Pasteless Shells

A nice break from a 4" pasteless shell. Click on
the image to see a short movie of the full break.

Making Shells You Can Build and Shoot on the Same Day
This set of instructions borrows from the Fulcanelli instructions - with modifications and pictures added. The Fulcanelli files were published in Pyrotechnica 9 and 11 and can be purchased on the web.

NOTE 1: "Traditionalists might grimace at some of these steps but they work great and they expedite the construction."

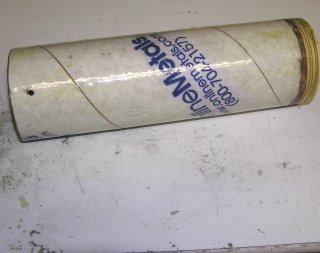

Make a former for your shell. A former is any tube that is
about 1/2" less in OD as the mortar tube ID.
A 4" shell former is about 3.5 inches. Good candidates
for formers are PVC pipe and shipping tubes. A good
former for a 3" shell is a beer or soda can.

Ideally, the former for pasteless shells should be
about 1/8" to 1/4" less in diameter than a normal former
but a normal former will still work fine. Just be sure to
keep the wraps and spiking tight so the final product will
fit in the mortar tube. This is especially important when
making smaller shells as the tolerance is sometimes less.

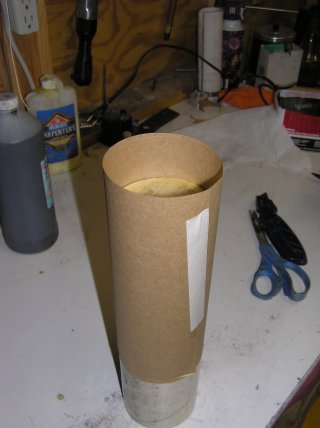

Wrap a couple of wraps of 30 lb paper on the former.
You can use grocery bags if you can't find good pyro
paper.

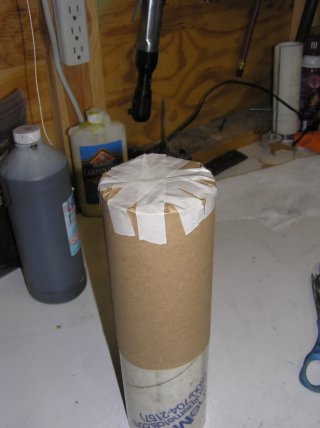

Put a chipboard end disk in the former and fold the
paper over it.

You can glue this, but if you are shooting it soon, it is
probably best to tape it. See Note 1.

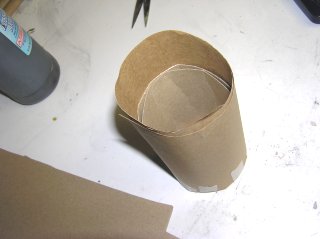

Take the paper from a breakfast food box and make
two turns. Put it inside the paper tube you just made.

Make a 5/8" tube of paper that is split at the bottom.
This will be your cannula.

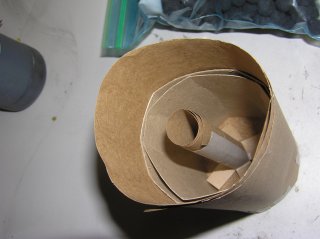

Put the paper tube in the shell

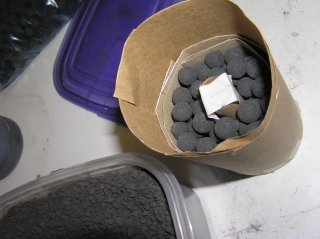

Put a piece of tape over the tube and fill the shell
with stars

Fill the tube with 2FA or equivalent and pack things
down

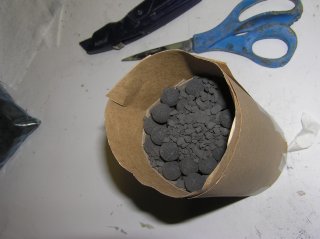

Pull the cannula out and you should have something
like the above. Note that when pulling the paper tube
out, you should continue to fill it with 2FA so the stars
don't cover the center when the tube is removed.

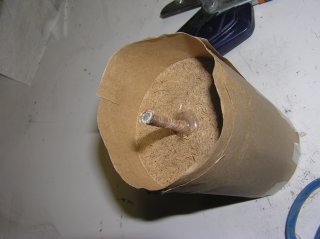

Put in another chipboard disk with a time fuse. Use
about 3 second timing and mark the fuse before you
assemble things.

Fold the paper over the chipboard

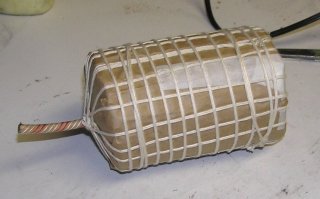

Spike tightly with cotton or jute (or flax). If your string
is weak, then use two strands as shown above. You can
wipe this with white glue - it will dry in just a few minutes

Cover the top of the shell with wax or hot glue

Put on another 30 lb wrap

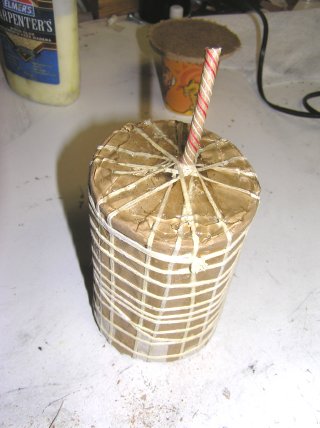

Spike this wrap, too. Wipe the string with white glue.
If you tied it tightly enough, the shell should be very
hard. It should not flex very much when you squeeze it.
If it does, re-spike it.

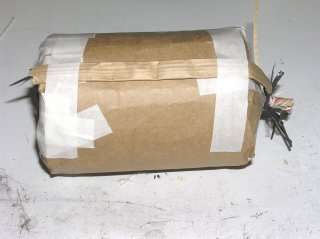

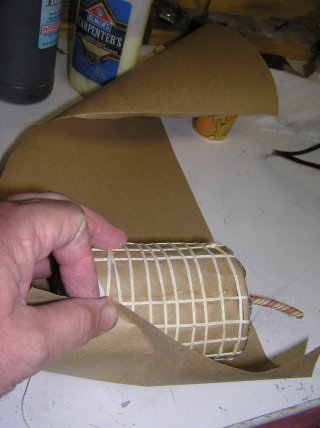

Finally, put on a final wrap (to protect the spiking).
This wrap is somewhat optional since the shell will
probably work without it.

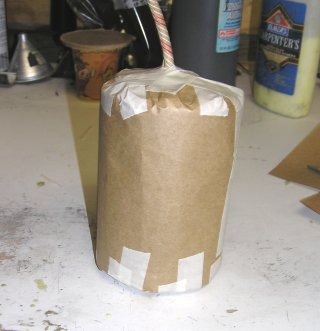

Tape a passfire made from quick match from
the fuse to the bottom of the shell

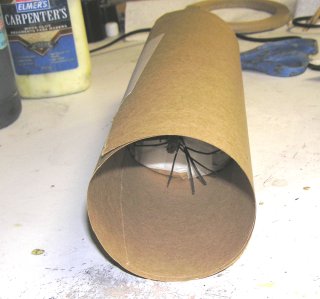

Put yet another wrap of paper around the shell

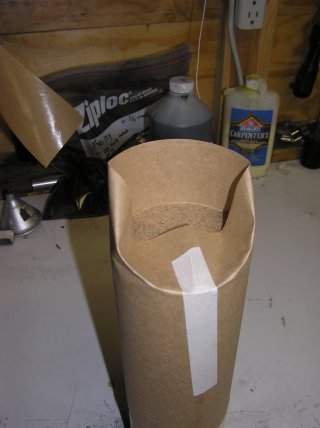

Fill the bottom with your lift. About 2 ounces if your
shell weighs two pounds. Fold over and tape the bottom.

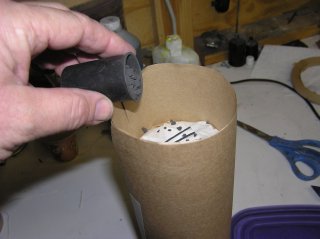

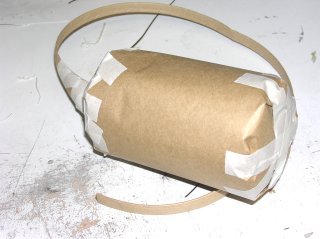

Put enough quick match into the shell to make sure
there is a bonfire inside the paper with the match fires.

Tie the match securely - I usually put a dab of glue on the
quick match paper and the inside of the shell - just before
I tie it all together. That secures things nicely.

Click on the first image at the top of this page to see this shell (or one about like it) in action.

To make miniature pasteless shells:

1. Use a 1.5" length of 7/8" rocket tube as the bottom shot
2. Cap with 1/8" plywood - hot glue
3. Spike the bottom shot vertically with stranded tape
4. Make a 'color/report' shell by wrapping the bottom shot with three wraps of 30 lb paper.
5. Put three wraps of chip board inside (important!)
6. Fuse everything at 1.5 seconds
7. Spike the color/report with stranded tape in both directions
8. Add a second color onto the top by wrapping the color/bottom shot with paper similar to what was done in item 4
9. Spike both vertically and horizontally with stranded tape
10. Wrap with masking tape
11. Complete as with any Italian-style shell
12. For two color and report, you will get a 75 gram shell - use 10 grams of festival ball BP for lift
13. For three color and report, you will get a 105 gram shell - use 14 grams of festival ball BP for lift
14. Use a 1.75 inch festival ball tube to launch (note that some tubes are oversized, use one of the smaller ones for best altitude).

Make a former for your shell. A former is any tube that is about 1/2" less in OD as the mortar tube ID. A 4" shell former is about 3.5 inches. Good candidates for formers are PVC pipe and shipping tubes. A good former for a 3" shell is a beer or soda can. Ideally, the former for pasteless shells should be about 1/8" to 1/4" less in diameter than a normal former but a normal former will still work fine. Just be sure to keep the wraps and spiking tight so the final product will fit in the mortar tube. This is especially important when making smaller shells as the tolerance is sometimes less.	Wrap a couple of wraps of 30 lb paper on the former. You can use grocery bags if you can't find good pyro paper.
Put a chipboard end disk in the former and fold the paper over it.	You can glue this, but if you are shooting it soon, it is probably best to tape it. See Note 1.
Take the paper from a breakfast food box and make two turns. Put it inside the paper tube you just made.	Make a 5/8" tube of paper that is split at the bottom. This will be your cannula.
Put the paper tube in the shell	Put a piece of tape over the tube and fill the shell with stars
Fill the tube with 2FA or equivalent and pack things down	Pull the cannula out and you should have something like the above. Note that when pulling the paper tube out, you should continue to fill it with 2FA so the stars don't cover the center when the tube is removed.
Put in another chipboard disk with a time fuse. Use about 3 second timing and mark the fuse before you assemble things.	Fold the paper over the chipboard
Spike tightly with cotton or jute (or flax). If your string is weak, then use two strands as shown above. You can wipe this with white glue - it will dry in just a few minutes	Cover the top of the shell with wax or hot glue
Put on another 30 lb wrap	Spike this wrap, too. Wipe the string with white glue. If you tied it tightly enough, the shell should be very hard. It should not flex very much when you squeeze it. If it does, re-spike it.
Finally, put on a final wrap (to protect the spiking). This wrap is somewhat optional since the shell will probably work without it.	Tape a passfire made from quick match from the fuse to the bottom of the shell
Put yet another wrap of paper around the shell	Fill the bottom with your lift. About 2 ounces if your shell weighs two pounds. Fold over and tape the bottom.
Put enough quick match into the shell to make sure there is a bonfire inside the paper with the match fires.	Tie the match securely - I usually put a dab of glue on the quick match paper and the inside of the shell - just before I tie it all together. That secures things nicely.
